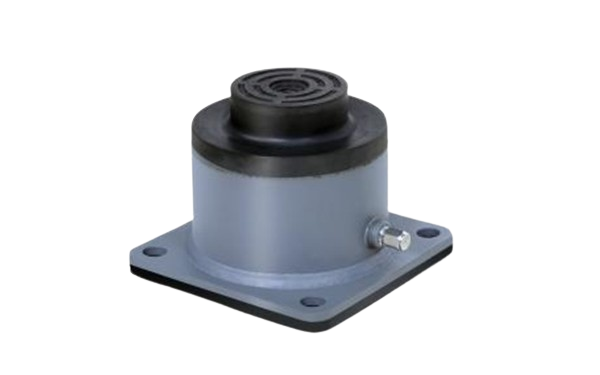

► Product structure description
1. Using air vibration damping, it can realize the basic vibration damping performance in both vertical and horizontal
directions with reasonable structure.
2. It can provide low-frequency vibration damping and shock control for three-coordinate measuring instruments, fans,
air compressors, motors/generating units, high-speed presses, etc..
3. As a low-frequency vibration damper, it not only reduces interference vibration but also provides horizontal adjustment
for machines.
► Technical characteristics
• In the application of vibration isolator, the inflatable part of THJ-1 can reduce vibration above 7 Hz by a large margin.
• The natural frequency of THJ-1 is as low as 4 Hz.
• The natural frequency of THJ-1 in vertical direction is 10Hz, and it can isolate the vibration above 14Hz.
• The ratio of natural frequency of horizontal and vertical direction is about 1:1, which can ensure good stability in horizontal direction.
• In application of reducing impact, the rubber shell of THJ-1 can provide support for high-pressure deformation.
• The use of external gaskets can prevent the bottom from rising and falling to maintain the natural frequency at 4Hz.
